Kao Collins IUT - 1" Cartridge
These inks are also available in the standard half-inch cartridges. To view the standard size Collins Black, Click Here.

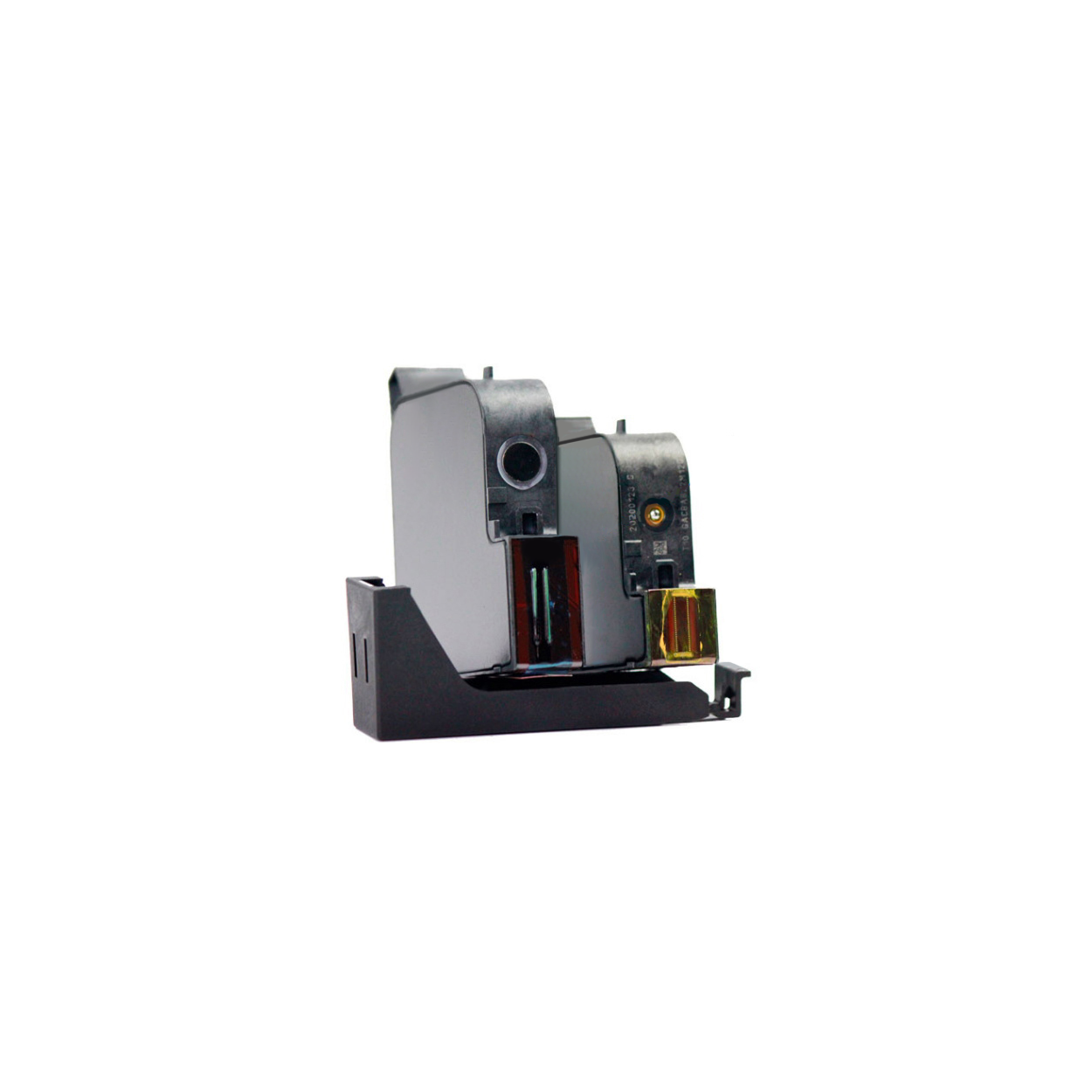

Kao Collins IUT - 1" Cartridge
Tried and tested Kao Collins Inks now come in the new TIJ2.5 1 inch (50mm) Cartridges and can be used in printers such as the Famjet Maxi, Answer X1 and Incode IN-TM2.0 Online Inkjet Printer
There are 6 inks types for the Kao Collins IUT 1” Cartridge available, all of them have been used and proven in mailing, packaging & security applications for years. We hold stock of the TWK2103H, Kao Collins Pack Black, but all the other inks can be ordered here, please allow 15 working days for delivery of non-stock inks for the Kao Collins IUT 1” Cartridge.
See below inks available for the Kao Collins IUT 1” Cartridge:
Collins Pack Black
Collins Pack Black TWK2103H cartridge is a water pigment-based ink that can be used on almost all permeable surfaces. The Collins Pack Black TWK2103H is a very black ink and generates high quality, scannable images and dries well on transit outer packaging substrates.
- Jetting parameters: 10.2v, 2.2us, Pulse Warming ON
- Shelf life: 24 months
- Packaging ink
- Operating conditions: 10ºc to 40ºC
- Storage temperature: 10ºC to 30ºC
Collins Data Black
Collins Data Black ink TWK1966H is dye-based and designed to print on pharmaceutical boxes. It produces high quality, darker, scannable images and has a fast dry time on regular and coated substrates, or alternatively for non-pharma applications allows you to obtain great legibility at half the print resolution!
- Jetting parameters: 10.2v, 2.2us, Pulse Warming ON
- Shelf life: 24 months
- Matte paper, Glossy paper
- Operating conditions: 10ºc to 40ºC
- Storage temperature: 10ºC to 30ºC
Collins Endurance Black
The Collins Endurance TWK2010H ink is a black, dye-based ink designed for bulk applications. It provides a dark image and high contrast which results in high ink cartridge throughput, giving you lower impression costs as a result and has an extended decal time so that you never lose the first part of a code after a break in the production flow.
- Jetting parameters: 10.2v, 2.2us, Pulse Warming ON
- Shelf life: 24 months
- Targeted at matte, glossy paper and chipboard style substrates
- Operating conditions: 10ºC to 40ºC
- Storage temperature: 10ºC to 30ºC
Collins Max3 Black
The Kao Collins Max3 TWK1396 ink cartridges is a water/solvent-based formulation that prints on non-porous substrates. TWK1396 Max 3 is a semi-aggressive, fast drying ink that produces a quality image that is damp/wet smudge resistant on a variety of media.
- Jetting parameters: 10.2v, 2.2us, Pulse Warming ON
- PVC, Tyvek, Plastic Cards, Aqueous Media
- Operating conditions: 10ºC to 40ºC
- Storage temperature: 10ºC to 30ºC
- This ink is non-hazchem
- Shelf life: 24 months
Collins Superfast Black
The Super-Fast Black Ink TWK1961H is a dye-based ink that was designed to print on scratch-off lottery tickets. It will provide you with a high-quality, darker scannable image that dries well on coated and non-coated substrates. The Super-Fast Black Ink TWK1961H provides adequate decap time with very little maintenance.
- Jetting parameters: 10.2v, 2.2us, Pulse Warming ON
- Matte papers, Glossy papers, Corrugated style substrates
- Operating conditions: 10ºC to 40ºC
- Storage temperature: 10ºC to 30ºC
- Shelf life: 24 months
Collins Sigma Black
Kao Collins Sigma is a solvent-based ink formulated to dry quickly on difficult media such as plastic films, PVC, UV coats and some metals. This ink offers extended decap times and shelf life.
- Jetting parameters: 8.4v, 1.8us, Pulse Warming OFF
- PE, PET & PP Films, PVC, UV Coated Media, Some metals (degreased)
- Operating conditions: 10ºC to 40ºC
- Storage temperature: 10ºC to 30ºC
- This ink is classified as UN1210, HazChem for shipment
- Shelf life: 24 months
There are many manufacturers of printers that integrate this Kao Collins IUT 1” Cartridge, but watch out, some of them are 'locked' to ink cartridges supplied by the manufacturer only - and resulting in the user paying higher ink prices during the lifetime of the printer.
Icon | Label | Description | Type | Size | Download |
---|---|---|---|---|---|
TWK2103 Pack Ink Technical Datasheet.pdf | TWK2103 Pack Ink Technical Datasheet (PDF) | 295.4 KB | Download | ||
TWK2010H Endurance Technical Datasheet.pdf | TWK2010H Endurance Technical Datasheet (PDF) | 331.3 KB | Download | ||
TWK1966H Data Black Technical Datasheet.pdf | TWK1966H Data Black Technical Datasheet (PDF) | 318.1 KB | Download | ||
TWK1961H Super Fast Black Technical Datasheet.pdf | TWK1961H Super Fast Black Technical Datasheet (PDF) | 319.6 KB | Download | ||
TWK1396 MAX3 Technical Datasheet.pdf | TWK1396 MAX3 Technical Datasheet (PDF) | 368.3 KB | Download | ||
TSK318203 Sigma TDS | 161.1 KB | Download |
